Nissan Patrol TD42Ti
Series Y61-TD42Ti
6 cylinder OHV Diesel
4169cc
Square 96mm x 96mm
Diff Ratio 4.1 : 1
VIN
JN1UCLY61A0525436
ELECTRICAL

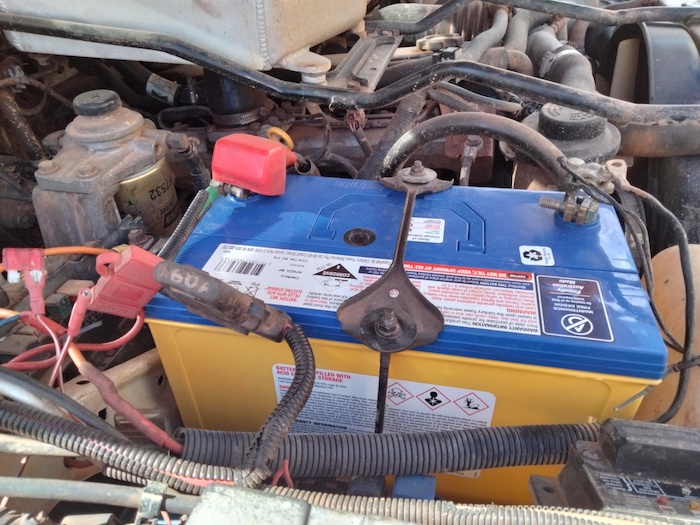

Cranking Battery
-
- New N70ZZ cranking battery
Power to Rear

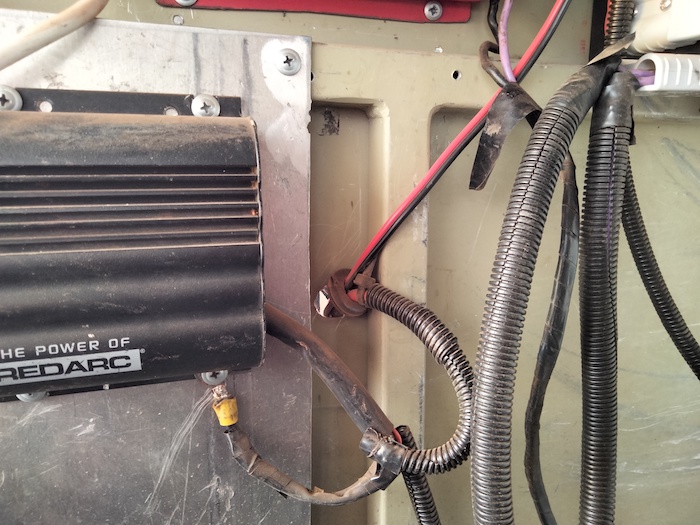

A red 8g cable from battery is routed through firewall and under passenger side door floor panel to rear of cab.
-

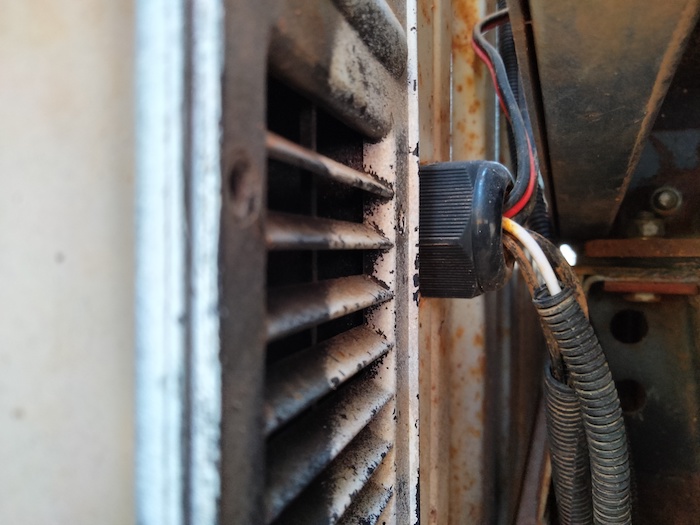

- Cables coming out of cab low down.
-
- Power lead coming into caopy

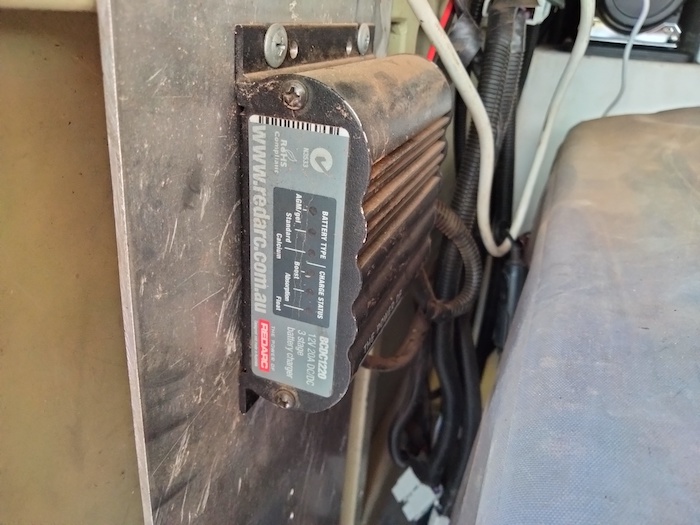

This cable goes direct to DC DC Charger mounted in rear canopy.
The DC DC Charger charges the House Batteries.

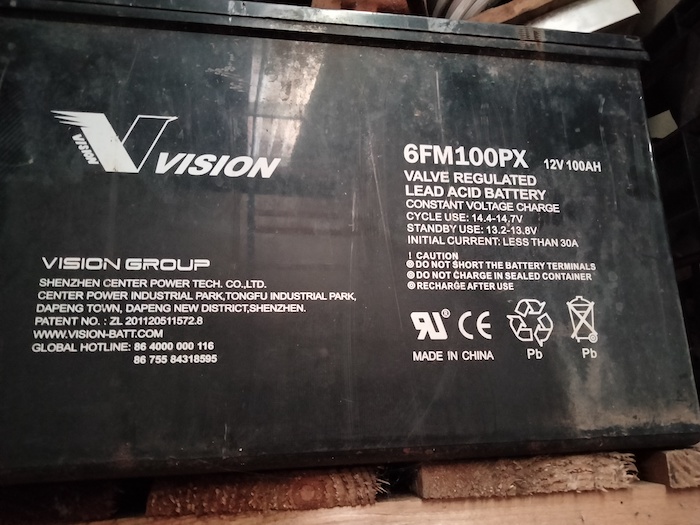

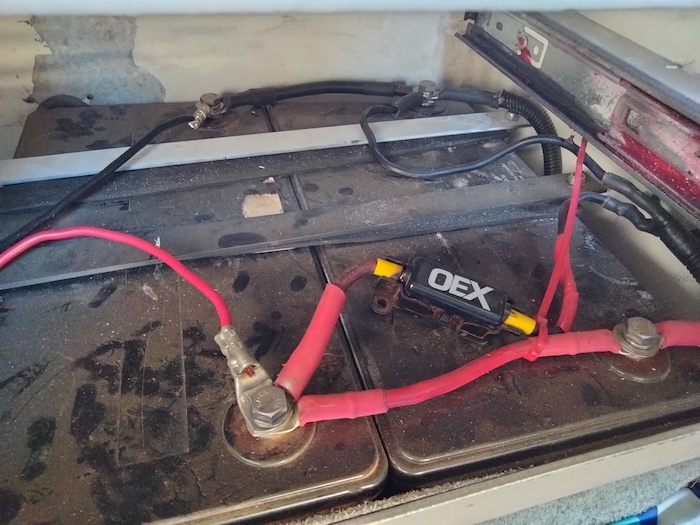

House Batteries
Accessories are connected to/powered by the House Batteries.
No accessories are connected to DC DC Charger.

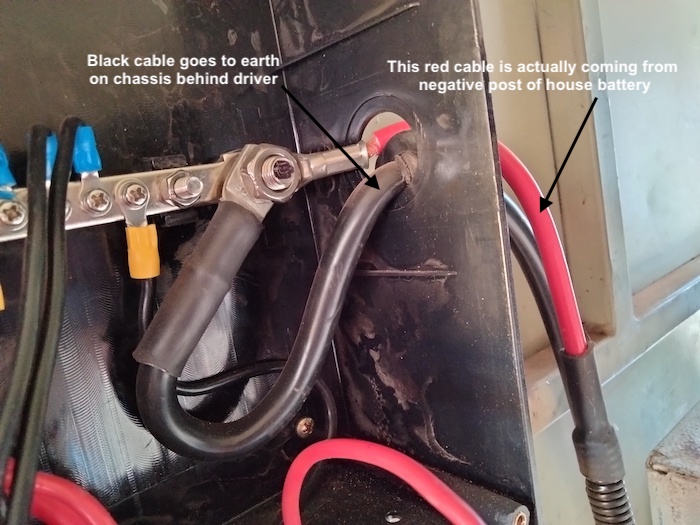

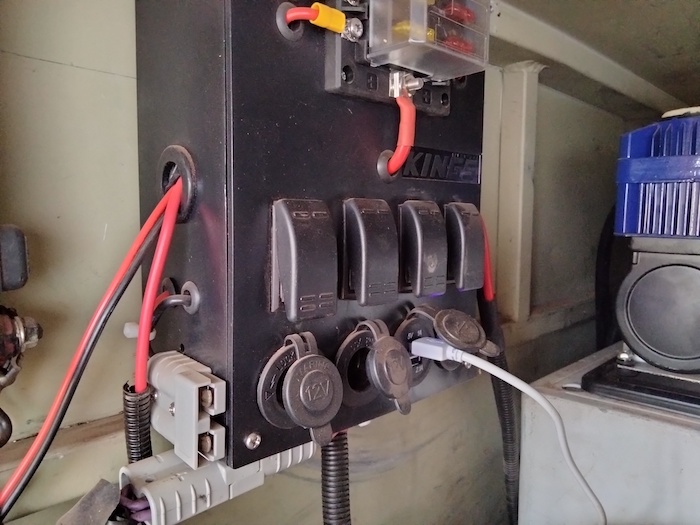

Power Board
-
- Power Board
-

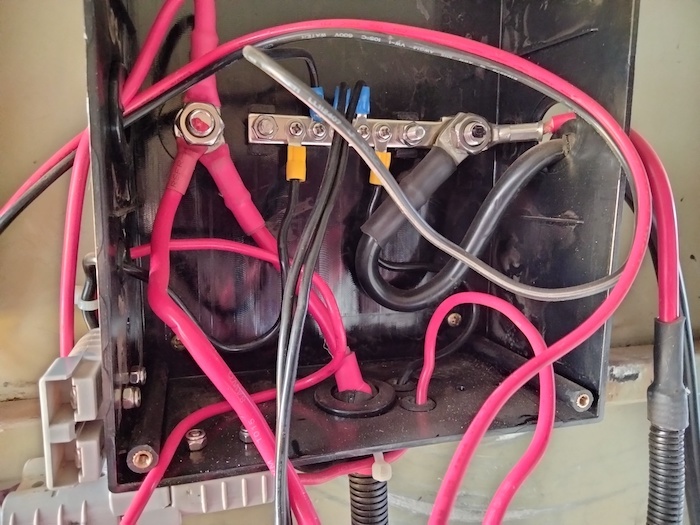

- Positive from house battery comes in bottom of power board.
ACCESSORIES
60L Engel fridge.
60L Primus freezer
-

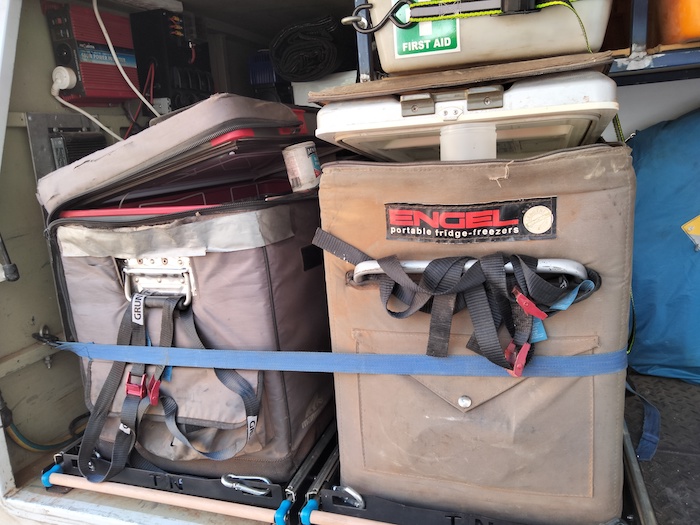

- Primus Freezer and Engel Fridge.
-

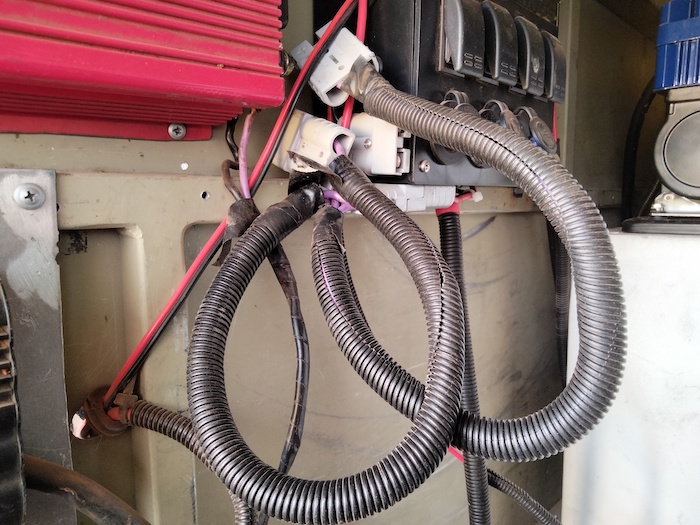

- The power leads for the two fridges

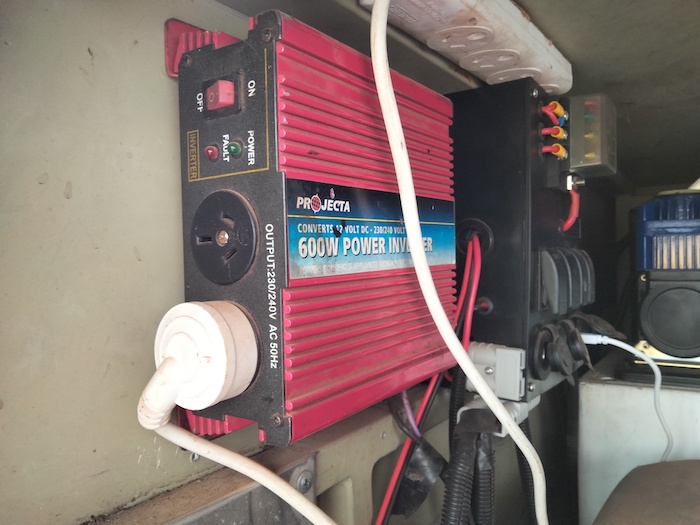

600 watt Power Inverter
-
- 600w power inverter.
Water Pump
Not connected
Sockets
Socket #1 Not in use
Socket #2 Not in use
Socket #3 Not in use
UNDERBODY
Exhaust
-

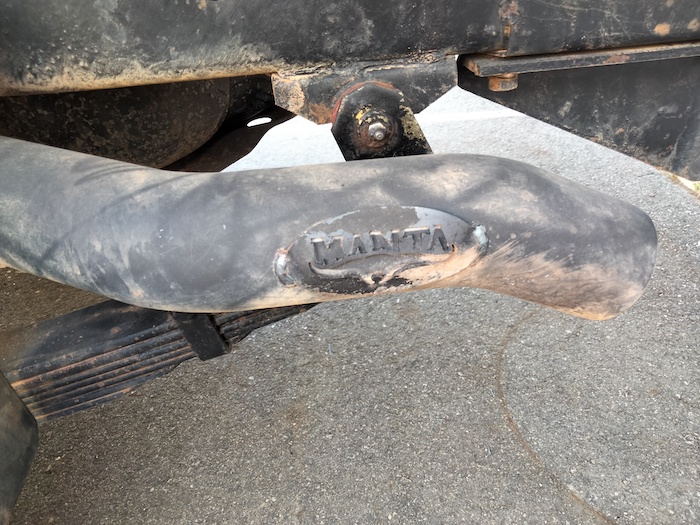

- New Mantra Exhaust fitted July 2023
-

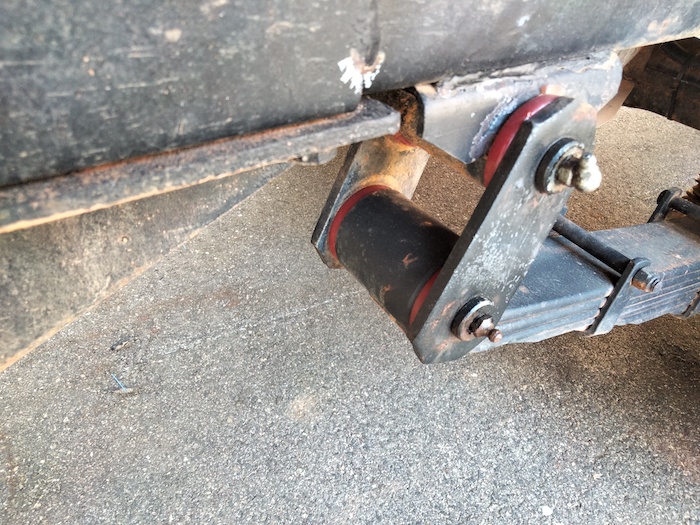

- New bushes fitted
-

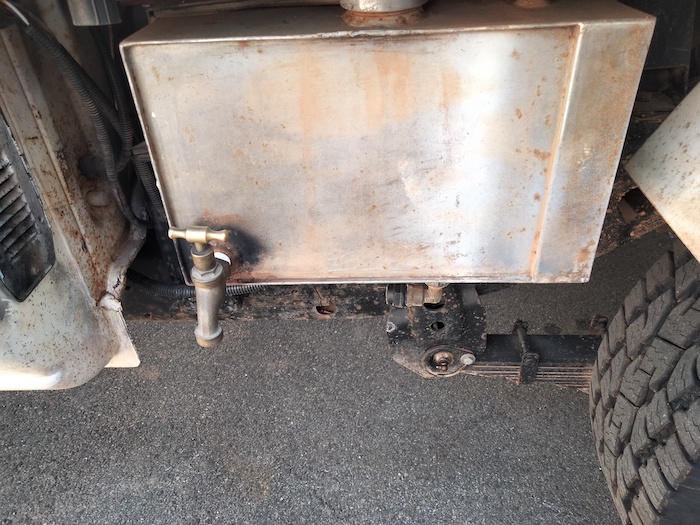

- 80L water tank
